Quick Detail:

1. cat6 sstp cable, Double shielded cable,4pairs,23awg ,250MHZ.

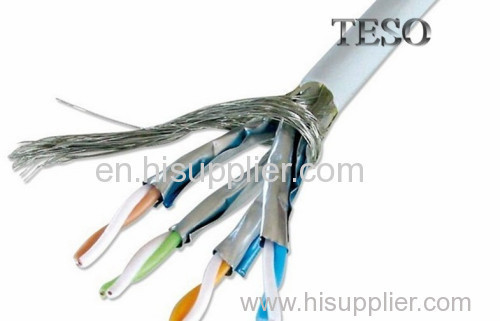

2.Structure:Bare copper conductor +HDPE insulation+ AL-Foil +Drain wire(customized)+ Braided shield + Jacket

3. Conductor: 1/0.575mm Bare copper , soft annealed bare copper.

4.Insulation: America Dow's HDPE

5.Outer jacket: PVC,LSZH,CMR,CMP  are available and any color will be optional.

6.Test :Pass fluke test and with 25 years quality warranty.

Specifications:

*Meets IEC 61156 requirements and ISO/IEC 11801, TIA/EIA-568

*The cable meets IEC 60332-1, UL 1581 VW-1 fire safety standards

Description

*Shielded Copper cable, 4 pairs, category 6, solid

*4 separately foil-shielded pairs

*General shield: wire braid

*Cable is used for indoor installation

Materials:

*Conductive material: bare copper

*Conductor insulation: PO, film-porous-film structure

*The cable jacket: PVC

*Shield: every pair is separately shielded with polyester aluminum foil (foil is on the outside), which covers 100% of twisted pair

*General shield: tinned copper braid - 55% minimum

Technical characteristics:

*Conductor diameter: 0.575 mm (0.02") (23 AWG)

*Insulated conductor diameter: 1.43 mm (0.06")

*Outer cable diameter: 8.2 mm (0.32")

*Jacket thickness: 0.5 mm (0.019")

*Pulling strength: 140 N max.

*Minimum bend radius: 31 mm (12,3")

*Operating temperature: -30°C - +70°C (-22°F - +158°F)

*Weight per 1000 ft (304.8 m): 69 lbs (21.3 kg)

*Standard package: 500 m (1640 ft)

Cable Features

*Rated up to over 250MHz

*Easy to use pull box with bigger payout.

*Cable is marked in descending order so you always know how much cable is in the box.

*Extra headroom provides room for growth.

*Low attenuation and power-sum crosstalk.

cat6 SSTP shielded Bulk cable Electrical Specification
